Description

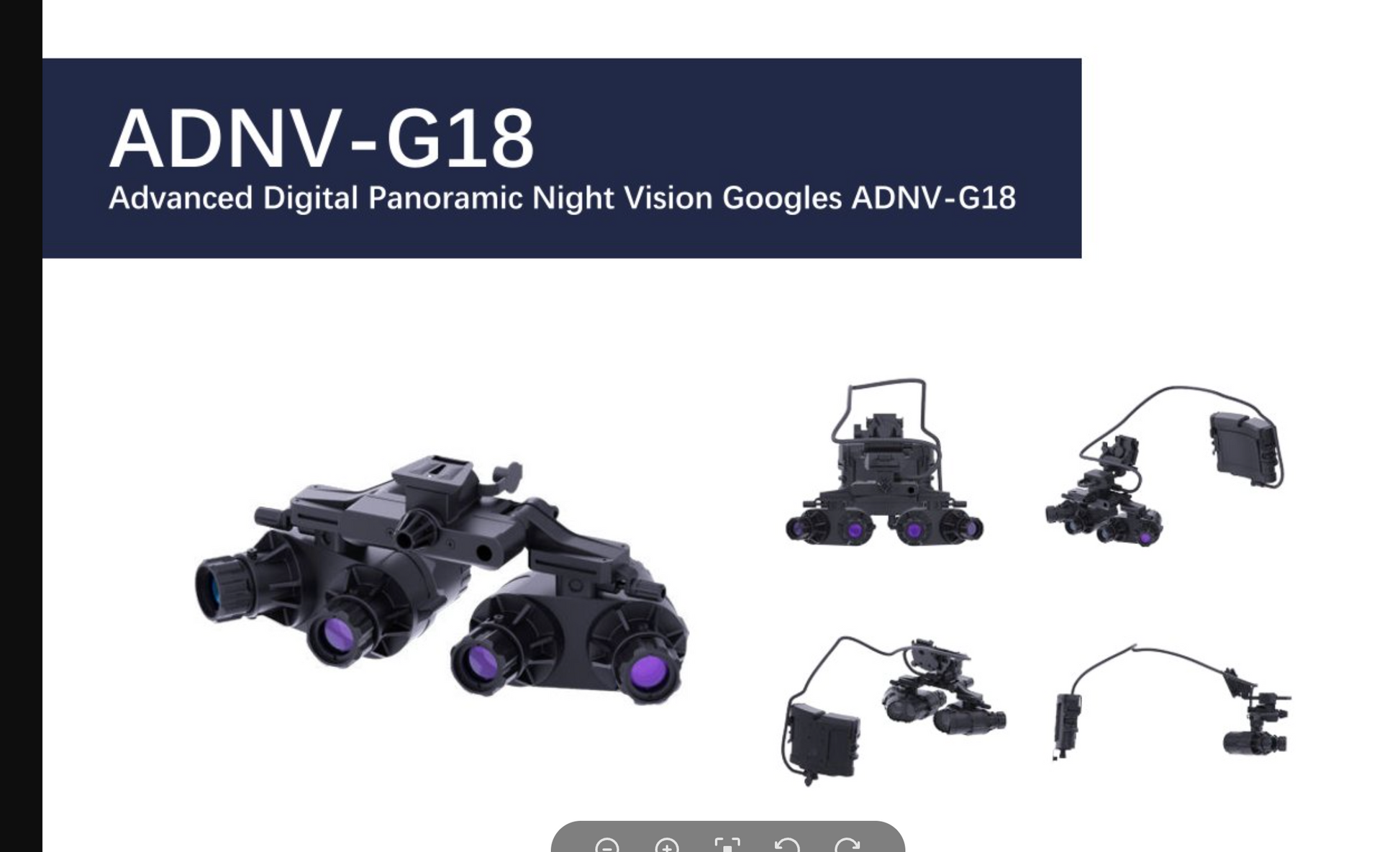

atm8 night vision goggles ADNV-G18 Quad Panoramic view Night Vision GoggleUSE coupon code G18 to get special discount The G18 got 4 x 1inch CMOS gen2 sensors (same sensor as P2) 120 degrees field of view (wider than analog tubes) Compatible with standard wilcox mount come with battery pack (4 x 18650 battery) NOTE: Currently G18 is backorderd, lead time is 15 20 days Main Technical Parameters Device Parameters Image sensor dimension: 1 inch Spectral response range: 400nm ~ 1100nm Image resolution: 800 600 Pixel size: 18m
USE coupon code G18 to get special discount
The G18 got 4 x 1inch CMOS gen2 sensors (same sensor as P2)
120 degrees field of view (wider than analog tubes)
Compatible with standard wilcox mount
come with battery pack (4 x 18650 battery)
NOTE: Currently G18 is backorderd, lead time is 15-20 days
Main Technical Parameters
Device Parameters
- Image sensor dimension: 1 inch
- Spectral response range: 400nm ~ 1100nm
- Image resolution: 800 × 600
- Pixel size: 18μm
- Minimum illumination (No light compensation): 0.00005 lx
- OLED resolution: 800 × 600
- Frame rate: 50Hz / 100Hz (customizable)
Optical Parameters
- Objective lens focal length: 19.8mm
- F/#: F1.2
- FOV: 120° (Horizontal)
- Exit pupil: 8mm
- Eye relief: 21mm
- Magnification: 1×
- Minimum objective focus: 250mm
- Diopter: External diopter piece
Parameters of the Entire Machine
- Boot time: < 4s
- Battery: Four 18650 rechargeable lithium batteries
- Operation time: > 22 hours
- Size: 219 × 105 × 89 mm
- Mechanical interface: Standard Wilcox interface
- Extensible electrical interface: Type-C
- Degree of protection: IP67
Weight
- Goggle only: < 640g
- System weight (including four batteries and cables): < 1200g
(Materials: Magnesium-aluminium alloy, Aluminium alloy, Composite resin)
Environmental Adaptability
- Operating temperature: -20°C ~ 55°C (expandable to -40°C ~ 60°C)
- Storage temperature: -25°C ~ 55°C (expandable to -45°C ~ 70°C)
DRI Performance
-
Human:
- Detection: 935m
- Recognition: 468m
- Identification: 234m
-
Vehicle:
- Detection: 1265m
- Recognition: 633m
- Identification: 316m
